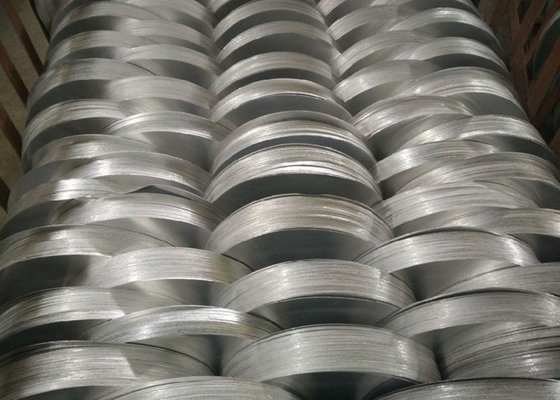

5182 / 7075 Aircraft Grade Aluminum Sheet Circle Bright Surface Temper H14

5182 / 7075 Aircraft Grade Aluminum Sheet Circle Bright Surface Temper H14

  • 5182 / 7075 Aircraft Grade Aluminum Sheet Circle Bright Surface Temper H14
5182 / 7075 Aircraft Grade Aluminum Sheet Circle Bright Surface Temper H14
পণ্যের বিবরণ:
Place of Origin: China
পরিচিতিমুলক নাম: Hobe
সাক্ষ্যদান: ISO/ROHS/SGS
প্রদান:
Minimum Order Quantity: Negotiation
মূল্য: Negotiation
Packaging Details: Pallet or Wooden Case
Delivery Time: 15-30 days
Supply Ability: 1500Ton per Month
যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
Product: Aluminum Sheet Circle Alloy: 7075 , 5182, 8079
Thickness: 2.35mm, 3.55mm and Etc Diameter: 100mm to 1250mm
Temper: O, H14, T6 And Etc Application: Industry
লক্ষণীয় করা:

aluminum circle sheet

,

aluminium circles


5182 / 7075 Aircraft Grade Aluminum Sheet Circle Bright Surface Temper H14





Quick Detal:



Aluminum circles is widely used in electronics, comestic, medicine, auto parts, home appliances, machine manfacturing, moulding, building and printing, especially for cookware, like non-stick pan, pressure cooker, and hardware, like lampshade, jacketing shall. Aluminum circle disc is the most widely used deep drawing products of aluminum alloy strip.



Description:



Our company stocks a full range of aluminum circles in several alloys,
such as 1050 1060 1070 1100 1200 3003 3004 3105 6061 6063 8011 etc.
Diameter from 100mm to 900mm, thickness from 0.5mm to 3.0mm are available.



1. Alloy type :

1050 1060 1070 3003 and Etc



2. Temper:

Soft, 1/2 Hard, 1/4 Hard, or Hard



3. Thickness Range:

0.35mm~5mm



4. Diameter Range:

120~1300mm



5. Surface Finish

Be free from Oil Stain, Dent, Inclusion, Scratches, Stain, Oxide Dicoloration, Breaks, Corrosion, Roll Marks, Dirt Streaks and other defect which will interfere with use,


6. Aluminum circle Mechenical Property:
Chemical Composite and Mechanical Property could meet the requirements of GB/T, ASTM, ENAW, JIS Standard


7. Aluminum circle Packing:

First, plastic cloth with drying agent inside; Second, Pearl Wool ; Third, wooden cases with dry agent , fumigation wooden pallets, aluminum surface could cover blue PVC film



We have cutting machines , we can process the aluminum sheet into different shape such as circle and triangle.we are the steady supplier of some famous cooler maker in China. Aluminum circles specifications is as bellow: alloy: 1050, 1060, 1070, 1100, 3003, 5052 according to your requirement.



Chemical composition



Grade Si Fe Cu Mn Mg Cr Ni Zn Al
1050 0.25 0.4 0.05 0.05 0.05 - - 0.05 99.5
1060 0.25 0.35 0.05 0.03 0.03 - - 0.05 99.6
1070 0.2 0.25 0.04 0.03 0.03 - - 0.04 99.7
1100 Si+Fe:0.95   0.05-0.2 0.05 - - 0.1 - 99
1200 Si+Fe:1.00   0.05 0.05 - - 0.1 0.05 99
1235 Si+Fe:0.65   0.05 0.05 0.05 - 0.1 0.06 99.35
3003 0.6 0.7 0.05-0.2 1.0-1.5 - - - 0.1 remains
3004 0.3 0.7 0.25 1.0-1.5 0.8-1.3 - - 0.25 remains
3005 0.6 0.7 0.25 1.0-1.5 0.20-0.6 0.1 - 0.25 remains
3105 0.6 0.7 0.3 0.30-0.8 0.20-0.8 0.2 - 0.4 remains
3A21 0.6 0.7 0.2 1.0-1.6 0.05 - - 0.1 remains
5005 0.3 0.7 0.2 0.2 0.50-1.1 0.1 - 0.25 remains
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 - 0.1 remains
5083 0.4 0.4 0.1 0.40-1.0 4.0-4.9 0.05-0.25 - 0.25 remains
5154 0.25 0.4 0.1 0.1 3.1-3.9 0.15-0.35 - 0.2 remains
5182 0.2 0.35 0.15 0.20-0.50 4.0-5.0 0.1 - 0.25 remains
5251 0.4 0.5 0.15 0.1-0.5 1.7-2.4 0.15 - 0.15 remains
5754 0.4 0.4 0.1 0.5 2.6-3.6 0.3 - 0.2 remains
6061 0.40-0.8 0.7 0.15-0.40 0.15 0.8-1.2 0.04-0.35 - 0.25 remains
6063 0.20-0.6 0.35 0.1 0.1 0.45-0.9 0.1 - 0.1 remains
6082 0.7-1.3 0.5 0.1 0.40-1.0 0.6-1.2 0.25 - 0.2 remains
6A02 0.50-1.2 0.5 0.20-0.6 Or Cr0.15-0.35 0.45-0.9 - - 0.2 remains
8011 0.50-0.9 0.6-1.0 0.1 0.2 0.05 0.05 - 0.1 remains





Product Features of cookware Aluminium circle:

Wide range of selection on circles' size including customized shape and size;

Excellent deep drawing and spinning quality;

Bright surface, no scratch



Specification



Chemical composition limits

Alloy Si Fe Cu Mn Mg Cr Zn Ti Total Other Al
3003 0.6 0.7 0.05-0.20 1.0-1.5 --- --- 0.10 --- 0.15 Remainder
3004 030 0.7 0.25 1.0-1.5 0.8-1.3 --- 0.25 --- 0.15 Remainder
3005 0.6 0.7 0.30 1.0-1.5 0.2-0.6 0.10 0.25 0.10 0.15 Remainder
3105 0.6 0.7 0.30 0.3-0.8 0.2-0.8 0.20 0.40 0.10 0.15 Remainder



Mechanical Property Limits

Alloy Temper Thickness/mm Tensile Strength, Rm/MPa Yield Strength, Rp0.2/MPa(min) Elongation/%, A50mm

3003



































O







>0.20--0.50

95--140







35







14
> 0.50--1.50 18
>1.50--3.00 20
>3.00--6.00 23

H12 or H22







>0.20--0.50

120--160







95








> 0.50--1.50 4
>1.50--3.00 5
>3.00--6.00 6

H14 or H24







>0.20--0.50

145--195







125







2
> 0.50--1.50 2
>1.50--3.00 3
>3.00--6.00 4

H16 or H26





>0.20--0.50

170--210







150



1
> 0.50--1.50 2
>1.50--4.00 2

H18 or H28





>0.20--0.50

190





  1
> 0.50--1.50 170 2
>1.50--4.00   2

3004



































O







>0.20--0.50

155--200







60







14
> 0.50--1.50 18
>1.50--3.00 20
>3.00--6.00 23

H32 or H22







>0.20--0.50

190--240







145







4
> 0.50--1.50 5
>1.50--3.00 6
>3.00--6.00 7

H34 or H24







>0.20--0.50

220--265







170







3
> 0.50--1.50 4
>1.50--3.00 4

H36 or H26





>0.20--0.50

240--285





190





3
> 0.50--1.50 3
>1.50--3.00 3

H38 or H28





>0.20--0.50

260



220



2
> 0.50--1.50 3





Application of cookware Aluminium circle:



Aluminium circle for pot making,

Aluminium disk for pot,

Deep drawing cookware,

Spinning cookware

Aluminium circle,

Pot circle,

Cooking utensils,

Cooker, pan,pot,boiler,

Cookware making

Road sign and traffic sign, and signal plate





Competitive Advantage:



1. Factory direct sells, with competitive price.

2. Quick delivery time, according to the clinet's demand

3. Expert in producing cold rolled and hot rolled aluminium circles

4. Can supply small trial orders

5. Many years producing technology to supply high quality products

6. Quick reply on the customer's questions
